[The World of Linkers—Theory 06] Before main Gets a Turn

The filenames in the commands below are placeholders for the inputs and outputs of this observation; choose any working directory.

An entry address such as 0x401067 is only a number in a file. Before the CPU can fetch an instruction there, something must establish its mappings, construct a stack, and transfer control under an agreed calling convention. The linker arranges an image. The loader makes that arrangement real.

A small static program gives us a complete path to follow:

1
#include <stdio.h>
2
int counter = 1;
3
int buffer[1024];
4
int main(int argc, char **argv) {
5
    buffer[0] = counter + argc;
6
    printf("hello %s %d\n", argv[0], buffer[0]);
7
    return 0;
8
}

1
$ musl-gcc -static -no-pie -O1 hello.c -o hello
2
$ readelf -lW hello
3
Elf file type is EXEC (Executable file)
4
Entry point 0x401067
5
There are 6 program headers, starting at offset 64
6

7
Program Headers:
8
  Type           Offset   VirtAddr           PhysAddr           FileSiz  MemSiz   Flg Align
9
  LOAD           0x000000 0x0000000000400000 0x0000000000400000 0x000190 0x000190 R   0x1000
10
  LOAD           0x001000 0x0000000000401000 0x0000000000401000 0x004907 0x004907 R E 0x1000
11
  LOAD           0x006000 0x0000000000406000 0x0000000000406000 0x000cb4 0x000cb4 R   0x1000
12
  LOAD           0x006fc0 0x0000000000407fc0 0x0000000000407fc0 0x000150 0x0017f8 RW  0x1000
13
  GNU_STACK      0x000000 0x0000000000000000 0x0000000000000000 0x000000 0x000000 RW  0x10
14
  GNU_RELRO      0x006fc0 0x0000000000407fc0 0x0000000000407fc0 0x000040 0x000040 R   0x1

Each LOAD describes file bytes, a virtual address, a memory extent, and permissions. GNU_RELRO and GNU_STACK describe protection requirements; they do not each introduce another copy of the file. The entry address completes the central handoff.

All builds and executions in this chapter were performed directly on x86-64 Linux: Ubuntu 26.04, Linux 7.0.0-28, GCC¹ 15.2, GNU² binutils³ 2.46, Clang/LLD 21.1.8, and musl⁴ 1.2.5. musl-gcc⁵ selects the native musl toolchain; ordinary gcc uses glibc⁶. Each observation should be performed in an independent working directory.

Source excerpts deliberately use Linux v6.8 and musl v1.2.5 so the implementation can be inspected at a fixed revision. Runtime observations come from the newer kernel above. Error codes and implementation ordering are observations of those versions, not promises imposed by ELF⁷.

The contract a loader must fulfill

For a valid PT_LOAD, ELF requires the following relationship. Let B be the displacement between the linked addresses and this load's addresses. A fixed-address program normally has B=0; a position-independent image receives a displacement chosen for that execution.

This requires filesz<=memsz, nonoverflowing range calculations, and accessible initialized file bytes. p_flags supplies the required read, write, and execute permissions. These are the obligations expressed by the image; copying into cleared memory and mapping file pages with a zero-filled extension are different ways to fulfill them. The loader need not know which symbol is named buffer or search for a section named .bss: the segment ranges already express the storage requirements.

Start with a loader small enough to read

xv6⁸, MIT's teaching kernel for RISC-V⁹, exposes the essential steps without Linux's full complexity. This is kexec from revision 06aad25:

1
  // Read the ELF header.
2
  if (readi(ip, 0, (uint64)&elf, 0, sizeof(elf)) != sizeof(elf))
3
    goto bad;
4

5
  // Is this really an ELF file?
6
  if (elf.magic != ELF_MAGIC)
7
    goto bad;
8

9
  if ((pagetable = proc_pagetable(p)) == 0)
10
    goto bad;
11

12
  // Load program into memory.
13
  for (i = 0, off = elf.phoff; i < elf.phnum; i++, off += sizeof(ph)) {
14
    if (readi(ip, 0, (uint64)&ph, off, sizeof(ph)) != sizeof(ph))
15
      goto bad;
16
    if (ph.type != ELF_PROG_LOAD)
17
      continue;
18
    if (ph.memsz < ph.filesz)
19
      goto bad;
20
    if (ph.vaddr + ph.memsz < ph.vaddr)
21
      goto bad;
22
    if (ph.vaddr % PGSIZE != 0)
23
      goto bad;
24
    uint64 sz1;
25
    if ((sz1 = uvmalloc(pagetable, sz, ph.vaddr + ph.memsz,
26
                        flags2perm(ph.flags))) == 0)
27
      goto bad;
28
    sz = sz1;
29
    if (loadseg(pagetable, ph.vaddr, ip, ph.off, ph.filesz) < 0)
30
      goto bad;
31
  }

It reads and checks the ELF header, creates a new user page table, and walks the program headers. For each PT_LOAD, it validates sizes and alignment, allocates zeroed pages through uvmalloc, and copies filesz bytes through loadseg.

There is no section-table walk, symbol lookup, or relocation processing. xv6's loader needs the header's program-table location/count and entry, plus each load segment's offset, virtual address, file size, memory size, and flags. The linker has already performed the section-level work.

BSS needs no special zero-copy loop here: allocation has already cleared the entire memory extent, while loadseg overwrites only the initialized prefix. xv6 requires page-aligned segment addresses because its copying routine obtains physical page starts and reads file bytes into them. That requirement explains the alignment in its user linker script.

After loading, xv6 allocates a guard page and stack, copies arguments, and commits the new image:

1
  // Commit to the user image.
2
  oldpagetable = p->pagetable;
3
  p->pagetable = pagetable;
4
  p->sz = sz;
5
  p->trapframe->epc = elf.entry; // initial program counter = ulib.c:start()
6
  p->trapframe->sp = sp;         // initial stack pointer
7
  proc_freepagetable(oldpagetable, oldsz);
8

9
  return argc; // this ends up in a0, the first argument to main(argc, argv)

The saved user register frame now names the new entry and stack. argc and argv reach the entry through the RISC-V argument registers; xv6's start then calls main. Before commitment, failure can free the new page table and return to the old image. Only a successful construction replaces it.

Three checks in the LOAD loop deserve attention: memsz>=filesz, page-aligned vaddr, and no overflow in vaddr+memsz. Those fields are supplied by the file's author. The loader is parsing untrusted data in the kernel, so arithmetic validity is part of maintaining process isolation, not merely an aid to friendly diagnostics. The xv6 book discusses both the historical risk and the teaching kernel's validation limits.

Linux's handoff has a point of no return

In Linux v6.8's ELF loader, load_elf_binary first checks magic, executable type (ET_EXEC or ET_DYN), and architecture. Reading the program headers also validates entry size and bounds the table size. Under the cited implementation's 4 KiB limit, 56-byte ELF64 headers allow at most 73 entries.

A first scan finds a program interpreter:

1
		if (elf_ppnt->p_type != PT_INTERP)
2
			continue;
3
		...
4
		retval = elf_read(bprm->file, elf_interpreter, elf_ppnt->p_filesz,
5
				  elf_ppnt->p_offset);
6
		...
7
		/* make sure path is NULL terminated */
8
		retval = -ENOEXEC;
9
		if (elf_interpreter[elf_ppnt->p_filesz - 1] != '\0')
10
			goto out_free_interp;
11

12
		interpreter = open_exec(elf_interpreter);

PT_INTERP contains a NUL-terminated path such as /lib/ld-musl-x86_64.so.1. For a normal dynamically linked executable, the kernel maps that interpreter and initially transfers control to its entry. A static executable has none.

Another scan interprets the stack-permission request:

1
		case PT_GNU_STACK:
2
			if (elf_ppnt->p_flags & PF_X)
3
				executable_stack = EXSTACK_ENABLE_X;
4
			else
5
				executable_stack = EXSTACK_DISABLE_X;
6
			break;

Absence of PT_GNU_STACK follows architecture/configuration defaults; an explicit header supplies the requested policy.

Early validation failures can return normally from execve. begin_new_exec changes that. It sets the point-of-no-return state, removes other threads as required, installs the prepared memory descriptor, and releases the old address space. A stack and copied argument/environment strings already exist in the prepared image. Subsequent mapping helpers operate on the process's current memory descriptor, so installation precedes completing every mapping.

If loading fails after this point, the old code is no longer available to receive an ordinary error return. The kernel must terminate the process. This differs from xv6's ability to build its small page table separately and commit at the end.

Map pages, not just segment bytes

Linux's elf_map rounds a segment outward to page boundaries:

1
	unsigned long size = eppnt->p_filesz + ELF_PAGEOFFSET(eppnt->p_vaddr);
2
	unsigned long off = eppnt->p_offset - ELF_PAGEOFFSET(eppnt->p_vaddr);
3
	addr = ELF_PAGESTART(addr);
4
	size = ELF_PAGEALIGN(size);
5
	...
6
		map_addr = vm_mmap(filep, addr, size, prot, type, off);

Both the virtual address and file offset move backward by the same page offset. This is why their within-page offsets must agree. The mapping uses MAP_PRIVATE: unmodified file-backed pages may be shared through the page cache, while a write creates private copy-on-write state rather than modifying the executable file.

MAP_FIXED replaces an existing mapping at the requested address. MAP_FIXED_NOREPLACE instead fails on a collision. In the cited ET_EXEC path, the initial placement uses the non-replacing form, while subsequent segments use fixed mapping. Permissions come from ELF's R/W/X flags.

Observe the result through /proc/self/maps:

1
$ musl-gcc -static -no-pie -O1 bsstail.c -o bsstail
2
$ readelf -lW bsstail | grep LOAD
3
  LOAD           0x000000 0x0000000000400000 0x0000000000400000 0x000190 0x000190 R   0x1000
4
  LOAD           0x001000 0x0000000000401000 0x0000000000401000 0x007d5d 0x007d5d R E 0x1000
5
  LOAD           0x009000 0x0000000000409000 0x0000000000409000 0x000e2c 0x000e2c R   0x1000
6
  LOAD           0x009fb0 0x000000000040afb0 0x000000000040afb0 0x000160 0x001be0 RW  0x1000
7
$ ./bsstail
8
00400000-00401000 r--p 00000000 00:23 734688                             <work>/bsstail
9
00401000-00409000 r-xp 00001000 00:23 734688                             <work>/bsstail
10
00409000-0040a000 r--p 00009000 00:23 734688                             <work>/bsstail
11
0040a000-0040c000 rw-p 00009000 00:23 734688                             <work>/bsstail
12
0040c000-0040d000 rw-p 00000000 00:00 0
13
3a584000-3a585000 ---p 00000000 00:00 0                                  [heap]
14
3a585000-3a586000 rw-p 00000000 00:00 0                                  [heap]

The final LOAD begins at 0x40afb0, so its mapping begins at 0x40a000. File offset 0x9fb0 rounds down to 0x9000. Its initialized extent spans 0xfb0+0x160=0x1110 bytes from that page boundary and therefore maps two pages, ending at 0x40c000.

The anonymous 0x40c000–0x40d000 mapping completes the zero-filled segment. Heap, stack, vDSO, and kernel-supplied vvar mappings are additional process state, not extra LOADs from the executable.

Zero-fill has two parts

The loader cannot assume bytes after p_filesz are already zero. The rest of the last mapped file page may contain a section table or compiler metadata:

1
	if (eppnt->p_filesz) {
2
		map_addr = elf_map(filep, addr, eppnt, prot, type, total_size);
3
		...
4
		if (eppnt->p_memsz > eppnt->p_filesz) {
5
			zero_start = map_addr + ELF_PAGEOFFSET(eppnt->p_vaddr) +
6
				eppnt->p_filesz;
7
			...
8
			if (padzero(zero_start) && (prot & PROT_WRITE))
9
				return -EFAULT;
10
		}
11
	}
12
	...
13
	if (eppnt->p_memsz > eppnt->p_filesz) {
14
		...
15
		zero_start = ELF_PAGEALIGN(zero_start);
16
		zero_end = ELF_PAGEALIGN(zero_end);
17

18
		error = vm_brk_flags(zero_start, zero_end - zero_start,
19
				     prot & PROT_EXEC ? VM_EXEC : 0);

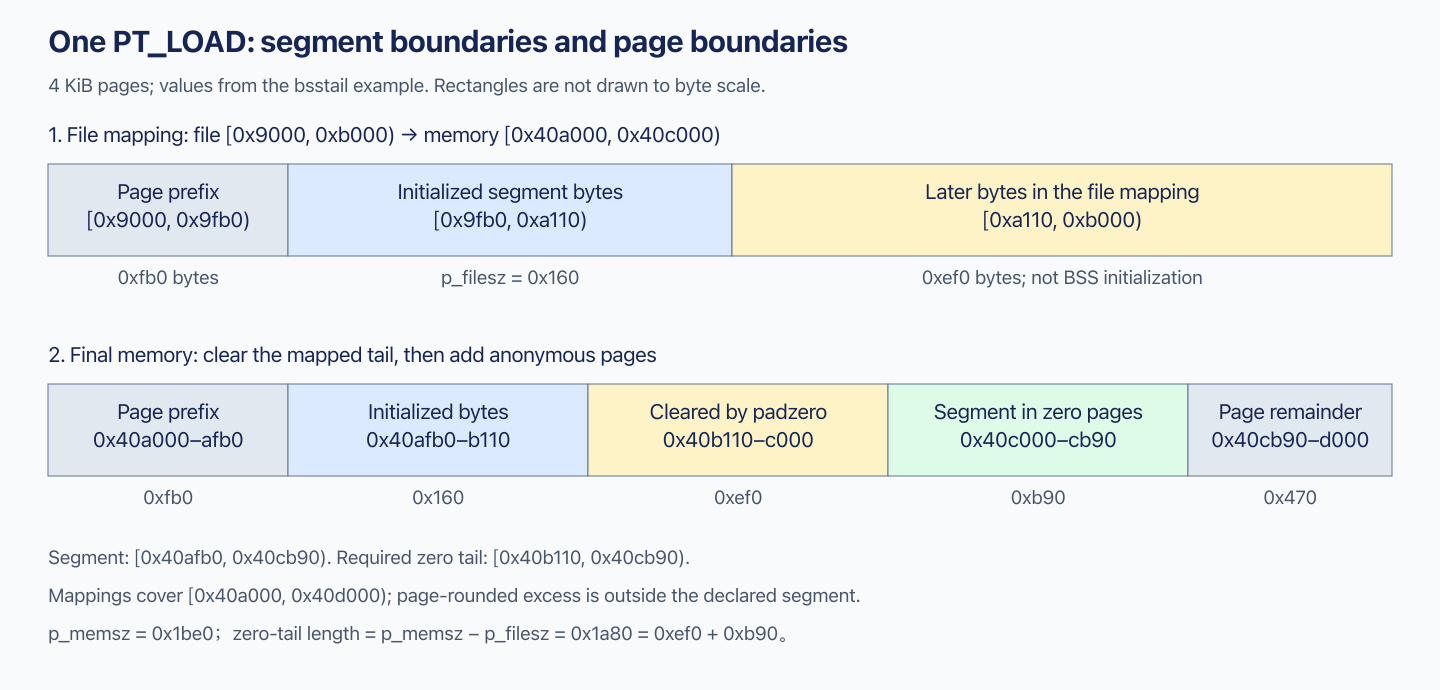

First, padzero clears the unused tail of the last file-backed page. That write can trigger copy-on-write. Second, anonymous mappings supply any remaining full pages through the rounded memory end. A read may initially use a shared zero page; writing requires appropriate private backing.

This example compares bytes in the file with bytes at the corresponding memory boundary:

1
RW: vaddr 0x40afb0 filesz 0x160 memsz 0x1be0 -> file part ends at 0x40b110
2
file  @0xa110: 47 43 43 3a 20 28 55 62 75 6e 74 75 20 31 35 2e
3
memory@0x40b110: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

The file contains the beginning of GCC's .comment string. Memory contains zeros. BSS can therefore occupy the cleared tail of a file mapping; it does not always require a separate anonymous page.

The required zero range starts at 0x40b110. Its prefix, [0x40b110, 0x40c000), occupies the last file-mapped page and must be overwritten with zeros. Anonymous pages supply [0x40c000, 0x40cb90). The declared segment ends at 0x40cb90, although page rounding extends the mapping to 0x40d000. That excess is not included in p_memsz, and the anonymous mapping’s length is not itself the BSS size.

A mapping is not a promise that every page is resident

Unlike xv6's eager copying, Linux can establish virtual memory areas without populating every page-table entry. Access faults cause the kernel to locate the relevant page-cache or anonymous backing and resume the program. This is demand paging.

Measure it with a 32 MiB read-only object and a 32 MiB zero-initialized array:

1
#define N (32u << 20)                       /* 32 MiB */
2
const unsigned char table[N] = { 1 };       /* in .rodata; occupies file bytes */
3
unsigned char zeros[N];                     /* in .bss; no initialized file bytes */

1
$ musl-gcc -static -no-pie -O1 paging.c -o paging
2
$ ./paging
3
table=0x40d0e0 zeros=0x2410140
4
start        0040d000 r--p Size  32776 kB  Rss    124 kB
5
start        02411000 rw-p Size  32768 kB  Rss      4 kB
6
after-table  0040d000 r--p Size  32776 kB  Rss  32776 kB
7
after-table  02411000 rw-p Size  32768 kB  Rss      4 kB
8
after-zeros  0040d000 r--p Size  32776 kB  Rss  32776 kB
9
after-zeros  02411000 rw-p Size  32768 kB  Rss  32768 kB

The read-only region initially has only 124 KiB resident in this run. Touching every page brings its full extent into memory. The anonymous region stays near its initial four KiB until every page is written, then reaches 32768 KiB. Readahead and cache state affect the exact figures. The experiment demonstrates deferred residency, not a fixed startup-cost formula.

Choosing the load bias

ET_EXEC uses specified virtual addresses. An ET_DYN image is placed with a load bias, added to each link-time p_vaddr. The first segment need not be exactly zero for the format to work.

1
			if (interpreter) {
2
				load_bias = ELF_ET_DYN_BASE;
3
				if (current->flags & PF_RANDOMIZE)
4
					load_bias += arch_mmap_rnd();
5
				alignment = maximum_alignment(elf_phdata, elf_ex->e_phnum);
6
				if (alignment)
7
					load_bias &= ~(alignment - 1);
8
				elf_flags |= MAP_FIXED_NOREPLACE;
9
			} else
10
				load_bias = 0;
11
			...
12
			load_bias = ELF_PAGESTART(load_bias - vaddr);

For an interpreted PIE¹⁰, the cited x86-64 implementation starts around ELF_ET_DYN_BASE and adds randomization. With conventional four-level paging, the rounded base expression gives 0x555555554000. For an ET_DYN image without an interpreter, mmap chooses a position in its own region; that includes directly invoked dynamic loaders and static PIE.

1
$ musl-gcc -static-pie -O1 spie_maps.c -o spie_maps
2
$ ./spie_maps; ./spie_maps
3
ops[0]=0x76b9cb2d74c9 main=0x76b9cb2d74d1
4
555590c0d000-555590c0e000 rw-p 00000000 00:00 0                          [heap]
5
76b9cb2d6000-76b9cb2d7000 r--p 00000000 00:23 734730                     <work>/spie_maps
6
76b9cb2d7000-76b9cb2de000 r-xp 00001000 00:23 734730                     <work>/spie_maps
7
76b9cb2de000-76b9cb2df000 r--p 00008000 00:23 734730                     <work>/spie_maps
8
76b9cb2df000-76b9cb2e1000 rw-p 00008000 00:23 734730                     <work>/spie_maps
9
ops[0]=0x7b4be7b124c9 main=0x7b4be7b124d1
10
555568701000-555568702000 rw-p 00000000 00:00 0                          [heap]
11
7b4be7b11000-7b4be7b12000 r--p 00000000 00:23 734730                     <work>/spie_maps
12
7b4be7b12000-7b4be7b19000 r-xp 00001000 00:23 734730                     <work>/spie_maps
13
7b4be7b19000-7b4be7b1a000 r--p 00008000 00:23 734730                     <work>/spie_maps
14
7b4be7b1a000-7b4be7b1c000 rw-p 00008000 00:23 734730                     <work>/spie_maps
15
$ musl-gcc -pie -fPIE -O1 spie_maps.c -o pie_dyn
16
$ ./pie_dyn; ./pie_dyn
17
ops[0]=0x573bac1231b9 main=0x573bac1231c1
18
573bac122000-573bac123000 r--p 00000000 00:23 734736                     <work>/pie_dyn
19
573bac123000-573bac124000 r-xp 00001000 00:23 734736                     <work>/pie_dyn
20
573bac124000-573bac125000 r--p 00002000 00:23 734736                     <work>/pie_dyn
21
573bac125000-573bac126000 r--p 00002000 00:23 734736                     <work>/pie_dyn
22
573bac126000-573bac127000 rw-p 00003000 00:23 734736                     <work>/pie_dyn
23
573be6870000-573be6871000 ---p 00000000 00:00 0                          [heap]
24
573be6871000-573be6872000 rw-p 00000000 00:00 0                          [heap]
25
ops[0]=0x5580b34291b9 main=0x5580b34291c1
26
5580b3428000-5580b3429000 r--p 00000000 00:23 734736                     <work>/pie_dyn
27
5580b3429000-5580b342a000 r-xp 00001000 00:23 734736                     <work>/pie_dyn
28
5580b342a000-5580b342b000 r--p 00002000 00:23 734736                     <work>/pie_dyn
29
5580b342b000-5580b342c000 r--p 00002000 00:23 734736                     <work>/pie_dyn
30
5580b342c000-5580b342d000 rw-p 00003000 00:23 734736                     <work>/pie_dyn
31
5580d9900000-5580d9901000 ---p 00000000 00:00 0                          [heap]
32
5580d9901000-5580d9902000 rw-p 00000000 00:00 0                          [heap]

The two static-PIE bases in this sample are 0x76b9cb2d6000 and 0x7b4be7b11000; the dynamic PIE uses different placements around the main-program region. These addresses are samples, not expected constants.

The heap break initially relates to the image's highest memory extent, then can be relocated/randomized:

1
	if ((current->flags & PF_RANDOMIZE) && (randomize_va_space > 1)) {
2
		/*
3
		 * For architectures with ELF randomization, when executing
4
		 * a loader directly (i.e. no interpreter listed in ELF
5
		 * headers), move the brk area out of the mmap region
6
		 * (since it grows up, and may collide early with the stack
7
		 * growing down), and into the unused ELF_ET_DYN_BASE region.
8
		 */
9
		if (IS_ENABLED(CONFIG_ARCH_HAS_ELF_RANDOMIZE) &&
10
		    elf_ex->e_type == ET_DYN && !interpreter) {
11
			mm->brk = mm->start_brk = ELF_ET_DYN_BASE;
12
		}
13

14
		mm->brk = mm->start_brk = arch_randomize_brk(mm);

The condition requires PF_RANDOMIZE and randomize_va_space > 1 before randomizing the initial break. For an ET_DYN image without an interpreter, the cited path first moves brk into the ELF_ET_DYN_BASE region. Separating it from the high mmap region leaves room for upward heap growth.

The two static-PIE samples illustrate this separation: their image bases are 0x76b9cb2d6000 and 0x7b4be7b11000, while their heaps start at 0x555590c0d000 and 0x555568701000. The important relationship is that the heap need not follow the image, rather than the particular randomized addresses.

These placement conditions come from the cited Linux v6.8 implementation, not the ELF format. An allocator can also add its own guard page: musl's mallocng creates an inaccessible page when extending its heap through brk. A ---p mapping alone therefore does not identify an ELF-loader action.

Finally, the kernel sets the initial instruction and stack pointers. With an interpreter, execution begins there; otherwise it begins at the executable's entry.

The initial stack is a structured message

Linux x86-64 passes startup information primarily through the stack layout specified by its psABI¹¹. After argc come argument pointers and a NULL, environment pointers and a NULL, then auxiliary-vector type/value pairs ending in AT_NULL. Strings and other payloads lie elsewhere in the initial stack region.

The kernel contributes auxiliary entries through code such as:

1
	NEW_AUX_ENT(AT_HWCAP, ELF_HWCAP);
2
	NEW_AUX_ENT(AT_PAGESZ, ELF_EXEC_PAGESIZE);
3
	NEW_AUX_ENT(AT_CLKTCK, CLOCKS_PER_SEC);
4
	NEW_AUX_ENT(AT_PHDR, phdr_addr);
5
	NEW_AUX_ENT(AT_PHENT, sizeof(struct elf_phdr));
6
	NEW_AUX_ENT(AT_PHNUM, exec->e_phnum);
7
	NEW_AUX_ENT(AT_BASE, interp_load_addr);
8
	...
9
	NEW_AUX_ENT(AT_ENTRY, e_entry);
10
	...
11
	NEW_AUX_ENT(AT_RANDOM, (elf_addr_t)(unsigned long)u_rand_bytes);

musl preserves enough of this arrangement that the demonstration can inspect it from argv. Use a deliberately small environment:

1
$ musl-gcc -static -no-pie -O1 stack.c -o stack
2
$ env -i HOME=/root PATH=/bin ./stack hi
3
0x7ffff5c240d0  argc = 2
4
0x7ffff5c240d8  argv[0] = 0x7ffff5c25fd0 ./stack
5
0x7ffff5c240e0  argv[1] = 0x7ffff5c25fd8 hi
6
0x7ffff5c240e8  argv[2] = 0
7
0x7ffff5c240f0  envp    = 0x7ffff5c25fdb HOME=/root
8
0x7ffff5c240f8  envp    = 0x7ffff5c25fe6 PATH=/bin
9
0x7ffff5c24100  envp    = NULL
10
0x7ffff5c24108  AT_SYSINFO_EHDR  0x70097ab3e000
11
0x7ffff5c24118  AT_MINSIGSTKSZ   0x6f0
12
0x7ffff5c24128  AT_HWCAP         0x178bfbff
13
0x7ffff5c24138  AT_PAGESZ        0x1000
14
0x7ffff5c24148  AT_CLKTCK        0x64
15
0x7ffff5c24158  AT_PHDR          0x400040
16
0x7ffff5c24168  AT_PHENT         0x38
17
0x7ffff5c24178  AT_PHNUM         0x6
18
0x7ffff5c24188  AT_BASE          0
19
0x7ffff5c24198  AT_FLAGS         0
20
0x7ffff5c241a8  AT_ENTRY         0x401067
21
0x7ffff5c241b8  AT_UID           0
22
0x7ffff5c241c8  AT_EUID          0
23
0x7ffff5c241d8  AT_GID           0
24
0x7ffff5c241e8  AT_EGID          0
25
0x7ffff5c241f8  AT_SECURE        0
26
0x7ffff5c24208  AT_RANDOM        0x7ffff5c24279
27
0x7ffff5c24218  AT_HWCAP2        0x2
28
0x7ffff5c24228  AT_EXECFN        0x7ffff5c25ff0
29
0x7ffff5c24238  AT_PLATFORM      0x7ffff5c24289
30
0x7ffff5c24248  AT_RSEQ_FEATURE_SIZE 0x21
31
0x7ffff5c24258  AT_RSEQ_ALIGN    0x40
32
0x7ffff5c24268  AT_NULL          0
33
AT_RANDOM bytes: b8 06 49 bb f2 09 15 12 b9 e7 fb 0e 7a 65 b2 ee
34
&_start = 0x401067, phdr in image = 0x400040

1
High addresses: argument strings, environment strings, AT_EXECFN string
2
               alignment gaps, platform "x86_64", 16 random bytes
3
0x7ffff5c24268  AT_NULL, 0
4
               ... remaining auxiliary-vector pairs ...
5
0x7ffff5c24108  AT_SYSINFO_EHDR, 0x70097ab3e000
6
0x7ffff5c24100  NULL (end of environment pointers)
7
0x7ffff5c240f8  envp[1] → PATH=/bin
8
0x7ffff5c240f0  envp[0] → HOME=/root
9
0x7ffff5c240e8  NULL (end of argument pointers)
10
0x7ffff5c240e0  argv[1] → hi
11
0x7ffff5c240d8  argv[0] → ./stack
12
0x7ffff5c240d0  argc = 2  ← initial stack pointer received by _start

Pointers occupy eight bytes; each auxiliary pair occupies sixteen. The recorded AT_RANDOM points to 16 random bytes, followed here by the platform string. Placement details and random values change; the structural contract remains.

Additional entries include IDs, clock ticks, signal-stack sizing, and rseq feature size/alignment. Unknown or additional entries must not break a consumer's walk to AT_NULL.

Convert a file offset into a runtime address

e_phoff is a file coordinate; AT_PHDR is a runtime coordinate. The bridge is the PT_LOAD mapping covering the table: file offset p_offset corresponds to runtime address load_bias + p_vaddr. The table begins e_phoff - p_offset bytes after that point, giving:

1
AT_PHDR = load_bias + p_vaddr + (e_phoff - p_offset)

The load bias is the displacement added to link-time virtual addresses; it is zero for this fixed-address example. The relevant table bytes must be covered by the mapping. An arbitrary LOAD is not a valid input to the formula. Here the first LOAD maps file offset zero at 0x400000 and e_phoff=64, yielding 0 + 0x400000 + (64 - 0) = 0x400040. The printed __ehdr_start + e_phoff agrees because this particular mapping also contains the ELF header at the beginning of the file. It does not imply that every ELF table lives at a base address plus 64.

Linux v6.8's loader computes phdr_addr from the LOAD covering e_phoff, then supplies it through the auxiliary vector. This calculation does not require PT_PHDR. A PT_PHDR entry describes the program-header table itself, including its link-time virtual address in p_vaddr. When a valid entry is present, userspace can recover load_bias as AT_PHDR - PT_PHDR.p_vaddr. The two calculations answer different questions: where the table was loaded, and how far the image was displaced.

Startup can also find PT_TLS to establish per-thread TLS¹² data, while a dynamic loader can find PT_DYNAMIC to read dynamic-linking information. Those mechanisms are developed later. The essential relationship here is that the auxiliary vector supplies a runtime entry point to a table describing the image.

AT_RANDOM connects startup to stack protection. In musl, __init_ssp has a weak no-op default; extracting the stack-checking implementation can replace it with the real initializer. This GCC configuration enables stack protection, so the tested hello already has a strong initializer. The real implementation derives its guard from random bytes and clears one byte to complicate string-based disclosure. The presence of a random vector does not itself prove that a particular linked image uses stack canaries.

AT_SECURE and identity checks also affect initialization. musl checks standard descriptors and can fill missing ones with /dev/null during secure execution, preventing a later sensitive open from unexpectedly becoming stdout or stderr.

Startup turns that message into a C environment

musl's x86-64 entry code is short:

1
__asm__(
2
".text \n"
3
".global " START " \n"
4
START ": \n"
5
"	xor %rbp,%rbp \n"
6
"	mov %rsp,%rdi \n"
7
".weak _DYNAMIC \n"
8
".hidden _DYNAMIC \n"
9
"	lea _DYNAMIC(%rip),%rsi \n"
10
"	andq $-16,%rsp \n"
11
"	call " START "_c \n"
12
);

It clears the outer frame pointer, passes the original stack pointer in %rdi, obtains _DYNAMIC in %rsi, aligns the stack, and calls _start_c. The weak _DYNAMIC is zero in this ordinary static executable:

1
0000000000401067 <_start>:
2
  401067: xor    %rbp,%rbp
3
  40106a: mov    %rsp,%rdi
4
  40106d: lea    -0x401074(%rip),%rsi        # 0 <_init-0x401000>
5
  401074: and    $0xfffffffffffffff0,%rsp
6
  401078: call   401080 <_start_c>

Stack alignment is observable behavior, not cosmetic tidiness. Before call, %rsp must satisfy the ABI's 16-byte alignment; the pushed return address gives the callee its expected offset. Deliberately disturb it:

1
$ cat start.s
2
    .globl _start
3
_start:
4
    xor %ebp, %ebp
5
    and $-16, %rsp
6
#ifdef MISALIGN
7
    sub $8, %rsp
8
#endif
9
    call start_c
10
$ cat sse.c
11
typedef int v4 __attribute__((vector_size(16)));
12
v4 g = { 41, 1, 0, 0 };
13
__attribute__((noinline)) int f(void) { volatile v4 x = g; return x[0] + x[1]; }
14
__attribute__((noreturn)) void start_c(void) {
15
    __asm__ volatile("syscall" :: "a"(60), "D"(f()));
16
    __builtin_unreachable();
17
}
18
$ clang -O1 -c sse.c
19
$ clang -x assembler-with-cpp -c start.s -o start_good.o
20
$ ld.lld -static start_good.o sse.o -o sse_good
21
$ clang -DMISALIGN -x assembler-with-cpp -c start.s -o start_bad.o
22
$ ld.lld -static start_bad.o sse.o -o sse_bad
23
$ ./sse_good; echo $?
24
42
25
$ ./sse_bad; echo $?
26
Segmentation fault
27
139

The correctly aligned program returns 42. The other receives SIGSEGV when its generated movaps accesses a misaligned stack location; the recorded shell status is 139.

The C entry extracts arguments:

1
void _start_c(long *p)
2
{
3
	int argc = p[0];
4
	char **argv = (void *)(p+1);
5
	__libc_start_main(main, argc, argv, _init, _fini, 0);
6
}

musl's first runtime stage finds the environment and initializes libc:

1
int __libc_start_main(int (*main)(int,char **,char **), int argc, char **argv,
2
	void (*init_dummy)(), void(*fini_dummy)(), void(*ldso_dummy)())
3
{
4
	char **envp = argv+argc+1;
5

6
	/* External linkage, and explicit noinline attribute if available,
7
	 * are used to prevent the stack frame used during init from
8
	 * persisting for the entire process lifetime. */
9
	__init_libc(envp, argv[0]);
10
	...
11
	return stage2(main, argc, argv);
12
}

envp=argv+argc+1 skips the argument terminator. __init_libc derives auxv, installs environment/program-name state, records the page size, initializes the main thread's TLS, configures stack protection, and applies secure-execution checks. The dummy initializer arguments reflect that musl refers to its own _init/_fini symbols directly.

The second stage runs initializers, calls main, and routes its result to exit:

1
static int libc_start_main_stage2(int (*main)(int,char **,char **), int argc, char **argv)
2
{
3
	char **envp = argv+argc+1;
4
	__libc_start_init();
5

6
	/* Pass control to the application */
7
	exit(main(argc, argv, envp));
8
	return 0;
9
}

For this static path, _init runs before forward traversal of .init_array. Termination runs atexit callbacks, traverses .fini_array backward, calls _fini, flushes stdio, and finally performs the exit syscall.

1
#include <stdio.h>
2
#include <stdlib.h>
3
__attribute__((constructor)) static void before(void) { puts("constructor: before main"); }
4
__attribute__((destructor))  static void after(void)  { puts("destructor: after exit"); }
5
static void bye(void) { puts("atexit handler"); }
6
int main(void) { atexit(bye); puts("main"); return 0; }

1
$ musl-gcc -static -no-pie -O1 ctor.c -o ctor
2
$ objdump -s -j .init_array -j .fini_array ctor
3
$ nm -n ctor | grep -E " (before|after|frame_dummy|__do_global_dtors_aux)$"
4
$ ./ctor
5
ctor:     file format elf64-x86-64
6

7
Contents of section .init_array:
8
 404fa0 60114000 00000000 82114000 00000000  `.@.......@.....
9
Contents of section .fini_array:
10
 404fb0 20114000 00000000 9b114000 00000000   .@.......@.....
11
0000000000401120 t __do_global_dtors_aux
12
0000000000401160 t frame_dummy
13
0000000000401182 t before
14
000000000040119b t after
15
constructor: before main
16
main
17
atexit handler
18
destructor: after exit

The arrays also contain GCC startup helpers: frame_dummy precedes the user's constructor, while reverse finalization calls the user's destructor before the earlier helper. C++ global constructors use the same general array mechanism. Shared-library initialization adds dynamic-loader responsibilities, addressed in the next chapter.

What the compiler driver supplied

Ask the driver to show its actual link:

1
$ musl-gcc -v -static -no-pie -O1 hello.c -o hello
2
.../collect2 ... -nostdlib -static -z relro -o hello
3
  /usr/lib/x86_64-linux-musl/Scrt1.o
4
  /usr/lib/x86_64-linux-musl/crti.o
5
  .../crtbeginS.o hello.o
6
  --start-group .../libgcc.a .../libgcc_eh.a -lc --end-group
7
  .../crtendS.o /usr/lib/x86_64-linux-musl/crtn.o

Ubuntu's musl specs choose Scrt1.o, crtbeginS.o, and crtendS.o even for this static ET_EXEC. Startup-file names are configuration-dependent; inspect the driver rather than importing another distribution's convention.

For this example, reproduce the link manually:

1
S=/usr/lib/x86_64-linux-musl
2
G=$(dirname "$(gcc -print-libgcc-file-name)")
3
musl-gcc -O1 -c hello.c -o hello.o
4
ld -static -o hello_manual \
5
  "$S/Scrt1.o" "$S/crti.o" "$G/crtbeginS.o" hello.o \
6
  -L"$S" -lc "$G/crtendS.o" "$S/crtn.o"
7
./hello
8
./hello_manual
9
cmp hello hello_manual

The recorded two files compare byte-for-byte equal; each prints its own argv[0]. Matching output is contingent on matching inputs and options, not a universal property of manual links.

The five conceptual startup roles are:

• The libc entry object supplies _start and _start_c. rcrt1.o adds self-relocation for static PIE.
• crti.o starts .init/.fini; crtn.o finishes them. Their contributions must enclose any intervening code.
• GCC's crtbegin supplies initialization/finalization helpers, weak unwind registration, and transactional-memory registration hooks where relevant.
• GCC's crtend supplies an unwind-section termination marker and must follow the relevant unwind contributions.

In this minimal musl .init, concatenation produces:

1
0000000000401000 <_init>:
2
  401000:	50                   	push   %rax
3
  401001:	58                   	pop    %rax
4
  401002:	c3                   	ret

The push/pop maintains alignment for possible inserted calls. A trivial C program may happen to run with fewer support objects, but that experiment does not prove they can be omitted from programs using constructors, unwinding, or other runtime features.

Static PIE must relocate itself

Position-relative instructions survive movement because the base cancels. Stored absolute addresses do not.

Which values change with the load bias?

Let a position's linked address be v and the load bias be B. Its runtime address is B+v. B is not a file offset; it equals the image's runtime start only when the lowest linked load address is zero. Classify how a value changes with B rather than inferring its meaning from its magnitude.

The cancellation in the first row requires both ends to move with the same B. An ABS symbol does not move with the image; adding B merely because its value resembles an image address would change its meaning. Conversely, an image symbol with linked address zero still moves with B.

For example, S=0x1100, P=0x1000, and A=−4 give displacement 0xfc. Loading the image with B=0x70000000 changes both endpoint addresses, leaving that displacement unchanged. A pointer to eight bytes before S=0x3000, however, must become 0x70002ff8. Its link-time value 0x2ff8 is not yet a runtime address to dereference.

Self-relocation must first obtain B. A general method uses an anchor's actual address minus its linked address: position-relative code obtains B+X, then (B+X)−X=B. Stored pointers become usable after their adjustment. The musl implementation below uses .dynamic as its anchor and obtains the linked address from PT_DYNAMIC. It subtracts two addresses, not two file positions.

The following source stores several absolute addresses in data:

1
#include <stdio.h>
2
static int add(int a, int b) { return a + b; }
3
static int sub(int a, int b) { return a - b; }
4
int (*const ops[])(int, int) = { add, sub };   /* absolute addresses stored in data */
5
const char *greeting = "hi";
6
int main(void) {
7
    printf("ops[0]=%p ops[1]=%p greeting=%p main=%p -> %d %s\n",
8
           (void *)ops[0], (void *)ops[1], (void *)greeting, (void *)main,
9
           ops[0](40, 2), greeting);
10
    return 0;
11
}

The source includes <stdio.h> for the displayed diagnostic call. Use native startup objects and libraries that support static PIE:

1
$ musl-gcc -static-pie -fPIE -O1 spie.c -o spie
2
$ readelf -hlW spie
3
  Type:                              DYN (Position-Independent Executable file)
4
  Entry point address:               0x1067
5
  LOAD           0x000000 0x0000000000000000 0x0000000000000000 0x000358 0x000358 R   0x1000
6
  LOAD           0x001000 0x0000000000001000 0x0000000000001000 0x004c87 0x004c87 R E 0x1000
7
  LOAD           0x006000 0x0000000000006000 0x0000000000006000 0x000d40 0x000d40 R   0x1000
8
  LOAD           0x006e20 0x0000000000007e20 0x0000000000007e20 0x0002f0 0x000998 RW  0x1000
9
  DYNAMIC        0x006e50 0x0000000000007e50 0x0000000000007e50 0x000180 0x000180 RW  0x8
10
  GNU_RELRO      0x006e20 0x0000000000007e20 0x0000000000007e20 0x0001e0 0x0001e0 R   0x1

The result is ET_DYN with PT_DYNAMIC but no PT_INTERP. A manual equivalent selects rcrt1.o and uses -static -pie --no-dynamic-linker -z text; -z text rejects runtime relocations in protected text, and linked code/libraries must be suitable for this mode.

1
$ readelf -rW spie
2
Relocation section '.rela.dyn' at offset 0x208 contains 14 entries:
3
    Offset             Info             Type               Symbol's Value  Symbol's Name + Addend
4
0000000000007e20  0000000000000008 R_X86_64_RELATIVE                         14c0
5
0000000000007e28  0000000000000008 R_X86_64_RELATIVE                         1480
6
0000000000007e30  0000000000000008 R_X86_64_RELATIVE                         14c9
7
0000000000007e38  0000000000000008 R_X86_64_RELATIVE                         14d1
8
0000000000007e40  0000000000000008 R_X86_64_RELATIVE                         8020
9
0000000000007e48  0000000000000008 R_X86_64_RELATIVE                         87a8
10
0000000000007fe8  0000000000000008 R_X86_64_RELATIVE                         7e50
11
0000000000008000  0000000000000008 R_X86_64_RELATIVE                         8000
12
0000000000008008  0000000000000008 R_X86_64_RELATIVE                         6032
13
0000000000008010  0000000000000008 R_X86_64_RELATIVE                         8020
14
0000000000008038  0000000000000008 R_X86_64_RELATIVE                         52f0
15
0000000000008068  0000000000000008 R_X86_64_RELATIVE                         5330
16
0000000000008070  0000000000000008 R_X86_64_RELATIVE                         5320
17
0000000000008078  0000000000000008 R_X86_64_RELATIVE                         81e8
18
00000000000014c9 t add
19
0000000000008008 D greeting
20
0000000000007e30 D ops
21
00000000000014d1 t sub

The pointer array at 0x7e30 has addends 0x14c9 and 0x14d1, the relative positions of add and sub. The greeting pointer at 0x8008 has addend 0x6032. R_X86_64_RELATIVE writes B+A at B+offset, with no symbol lookup. Initialization arrays, GOT¹³ slots, and self-pointers such as __dso_handle can need the same adjustment.

musl reuses the beginning of its dynamic loader inside rcrt1.o:

1
#define START "_start"
2
#define _dlstart_c _start_c
3
#include "../ldso/dlstart.c"
4

5
int main();
6
weak void _init();
7
weak void _fini();
8
int __libc_start_main(int (*)(), int, char **,
9
	void (*)(), void(*)(), void(*)());
10

11
hidden void __dls2(unsigned char *base, size_t *sp)
12
{
13
	__libc_start_main(main, *sp, (void *)(sp+1), _init, _fini, 0);
14
}

The familiar entry assembly computes _DYNAMIC through RIP-relative addressing, so it can find the table before any stored pointer has been fixed. The early C code decodes auxv and dynamic tags, then derives a base:

1
	base = aux[AT_BASE];
2
	if (!base) {
3
		size_t phnum = aux[AT_PHNUM];
4
		size_t phentsize = aux[AT_PHENT];
5
		Phdr *ph = (void *)aux[AT_PHDR];
6
		for (i=phnum; i--; ph = (void *)((char *)ph + phentsize)) {
7
			if (ph->p_type == PT_DYNAMIC) {
8
				base = (size_t)dynv - ph->p_vaddr;
9
				break;
10
			}
11
		}
12
	}

Without an interpreter, AT_BASE is zero. Subtracting PT_DYNAMIC.p_vaddr from the actual _DYNAMIC address recovers the static PIE's bias. Relative RELA entries can now be applied:

1
	rel = (void *)(base+dyn[DT_RELA]);
2
	rel_size = dyn[DT_RELASZ];
3
	for (; rel_size; rel+=3, rel_size-=3*sizeof(size_t)) {
4
		if (!IS_RELATIVE(rel[1], 0)) continue;
5
		size_t *rel_addr = (void *)(base + rel[0]);
6
		*rel_addr = base + rel[2];
7
	}

The same early code also supports packed RELR entries. Only after relocation can it hand off to __dls2 and the ordinary libc startup path.

Bootstrapping imposes a strict rule: pre-relocation code cannot depend on pointers that still need relocation. It uses stack-local tables and deliberately simple loops, and obtains the next function address with architecture-specific position-relative code. Calling an arbitrary library helper at this point could reintroduce exactly the dependency being initialized.

1
$ ./spie; ./spie
2
ops[0]=0x7d0001edb4c9 ops[1]=0x7d0001edb4d1 greeting=0x7d0001ee0032 main=0x7d0001edb4da -> 42 hi
3
ops[0]=0x7b4bd59314c9 ops[1]=0x7b4bd59314d1 greeting=0x7b4bd5936032 main=0x7b4bd59314da -> 42 hi

Subtracting 0x14c9 from the first function address yields a different base on each execution, yet both runs produce 42 hi.

glibc uses the same broad idea with different staging. In the cited glibc 2.42 implementation, static startup initializes auxv, tunables, and CPU features before _dl_relocate_static_pie; CPU-dependent indirect resolvers require that feature information. Those details belong to that implementation/version, not to the musl path above.

Malformed files expose validation boundaries

Linux checks user-address limits and segment sizes:

1
		/*
2
		 * Check to see if the section's size will overflow the
3
		 * allowed task size. Note that p_filesz must always be
4
		 * <= p_memsz so it is only necessary to check p_memsz.
5
		 */
6
		if (BAD_ADDR(k) || elf_ppnt->p_filesz > elf_ppnt->p_memsz ||
7
		    elf_ppnt->p_memsz > TASK_SIZE ||
8
		    TASK_SIZE - elf_ppnt->p_memsz < k) {
9
			/* set_brk can never work. Avoid overflows. */
10
			retval = -EINVAL;
11
			goto out_free_dentry;
12
		}

After bounding p_memsz, checking TASK_SIZE−p_memsz < p_vaddr avoids overflow-prone addition. But rejection timing matters as much as the condition. Modify one field at a time in the native tiny executable; its RW header has index 3, offset 0x3fc0, virtual address 0x404fc0, file size 0x150, and memory size 0x17f8.

The full one-field mutations are in run-all.sh; disable core-file generation for these controlled failures. strace shows the syscall directly, avoiding shell-specific handling of an unrecognized executable. Status 139 is the shell convention 128+SIGSEGV; 135 similarly indicates SIGBUS.

These failures fall at different boundaries. A wrong architecture is rejected before replacing the process. Invalid segment sizes can fail after the old image is gone. Mapping beyond the file may succeed because the mapping itself does not read every page: a later BSS-tail write can fail during loading, while a first instruction fetch can expose missing backing only afterward. An entry below the user-address ceiling can still point to unmapped or non-executable memory; structural validation does not prove it is a meaningful instruction address.

Two individually plausible segments can also conflict after page rounding:

1
$ readelf -lW shared | grep LOAD
2
  LOAD           0x001000 0x0000000000201000 0x0000000000201000 0x00000d 0x00000d R E 0x1000
3
  LOAD           0x001800 0x0000000000201800 0x0000000000201800 0x000004 0x000004 RW  0x1000
4
$ readelf -lW overlap | grep LOAD
5
  LOAD           0x001000 0x0000000000201000 0x0000000000201000 0x00100d 0x00100d R E 0x1000
6
  LOAD           0x002800 0x0000000000201800 0x0000000000201800 0x000004 0x000004 RW  0x1000
7
$ strace -e trace=execve ./shared
8
execve("./shared", ...) = 0
9
--- SIGSEGV {si_signo=SIGSEGV, si_code=SEGV_ACCERR, si_addr=0x201000} ---
10
$ strace -e trace=execve ./overlap
11
execve("./overlap", ...) = 0
12
--- SIGSEGV {si_signo=SIGSEGV, si_code=SEGV_ACCERR, si_addr=0x201000} ---

Both examples complete exec, then the writable mapping replaces the code page. Fetching at 0x201000 raises SEGV_ACCERR: the address is mapped, but execution is forbidden. Even byte ranges that do not overlap can share a page.

A user-space loader needs checks for header/table/file bounds, filesz<=memsz, overflow, congruence, and mapping conflicts. It shares the host process's address space, descriptors, and authority; parser checks do not make it an isolation sandbox.

When the entry belongs to another module

Remove -static:

1
$ musl-gcc -O1 hello.c -o hello_dyn
2
$ readelf -lW hello_dyn | grep -E "INTERP|interpreter|DYNAMIC"
3
  INTERP         0x000238 0x0000000000000238 0x0000000000000238 0x000019 0x000019 R   0x1
4
      [Requesting program interpreter: /lib/ld-musl-x86_64.so.1]
5
  DYNAMIC        0x002e00 0x0000000000003e00 0x0000000000003e00 0x0001c0 0x0001c0 RW  0x8

The kernel now maps the named interpreter, sets AT_BASE, and starts there. musl combines libc and its dynamic loader in one file; glibc commonly loads libc separately. Either way, runtime lookup and relocation still have work to do before the program's _start can run. Theory 07 follows the tables the static linker prepared for that work.

Exercises

1. Derive the mappings from these native headers with 4096-byte pages. Give ranges, permissions, file offsets, and any additional anonymous pages:

1
$ musl-gcc -static -no-pie -O1 maps.c -o maps
2
$ readelf -lW maps
3
  LOAD 0x000000 0x400000 0x400000 0x000190 0x000190 R   0x1000
4
  LOAD 0x001000 0x401000 0x401000 0x005767 0x005767 R E 0x1000
5
  LOAD 0x007000 0x407000 0x407000 0x000ce8 0x000ce8 R   0x1000
6
  LOAD 0x007fb0 0x408fb0 0x408fb0 0x000160 0x001840 RW  0x1000

2. A writable segment has p_vaddr=0x405fb0, p_offset=0x4fb0, p_filesz=0x160, and p_memsz=0xc20. Calculate the file mapping, cleared tail, and anonymous extension. Its char small[1000] is zero-initialized; must it occupy a separately mapped anonymous page?
3. Predict and then inspect these mutations. Header indices refer to the recorded inputs; inspect fresh files rather than assuming indices survive rebuilding:

1
python3 patch.py tiny e1 e_entry 0x400000
2
python3 patch.py maps e2 p_flags 7 4
3
python3 patch.py tiny e3 p_filesz 0x28 3
4
strace -e trace=execve ./e1
5
./e2 | grep stack
6
strace -e trace=execve ./e3

e1 points entry at the ELF header; e2 requests an executable stack; e3 shortens initialized RW content while keeping the memory extent.

Answers

1. Round each mapping outward

1
00400000-00401000 r--p 00000000
2
00401000-00407000 r-xp 00001000
3
00407000-00408000 r--p 00007000
4
00408000-0040a000 rw-p 00007000
5
0040a000-0040b000 rw-p 00000000  (anonymous)

The last LOAD rounds down from 0x408fb0 to 0x408000 and from file offset 0x7fb0 to 0x7000. Initialized data ends at 0x409110, so the mapping reaches 0x40a000. The full memory end is 0x40a7f0; an anonymous page completes it through 0x40b000. RELRO and stack headers do not create additional file mappings.

2. BSS can fit in the final mapped page

The within-page offset is 0xfb0. The mapping starts at 0x405000, file offset 0x4000, and spans align_up(0xfb0+0x160)=0x2000, ending at 0x407000. Clear from 0x406110 through that page end. The memory end, 0x406bd0, rounds to the same 0x407000, so no additional anonymous page is needed.

3. Structural validity does not imply useful execution

The first LOAD is read-only and non-executable, so e1 fails on instruction fetch. e2 explicitly changes the stack request; missing-note defaults are a different issue. e3 satisfies the size inequality but turns part of the GOT/data into zero-fill. Startup then dereferences a cleared pointer. The loader cannot infer the intended semantic content of every data word.

References and terminology

• Linux v6.8 ELF loading and exec commitment.
• xv6 exec and x86-64 process initialization ABI.
• musl v1.2.5: entry assembly, libc startup, early relocation, and exit.
• glibc 2.42 static startup.
